Modulbausatz Spur N für die Modelleisenbahn

Von Sven
modulkasten spur n einzeteile lasercut hangprofil

This Link to the Post in English

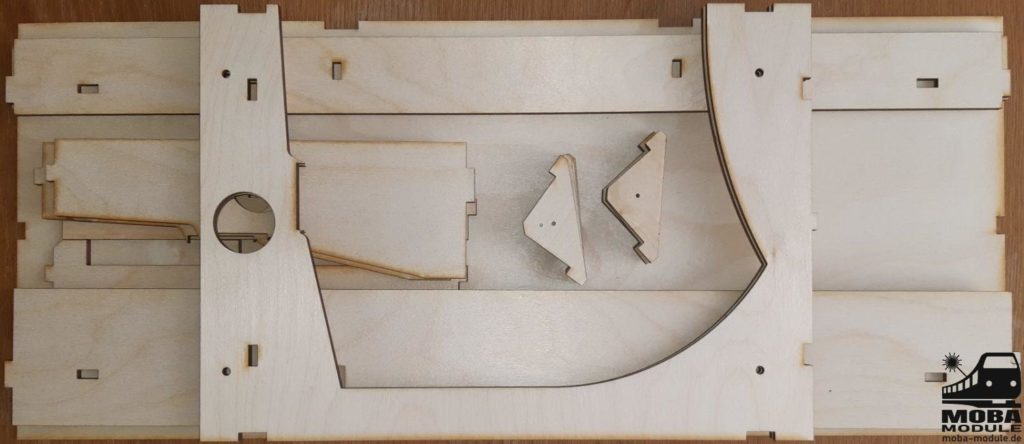

Die Modul Einzelteile sind gelasert

Im Beitrag Modulkasten in Spur N für Segmente und Dioramen hatten wir unser neues Modul für Spur N mit dem Hangprofil planerisch vorgestellt. Jetzt haben wir die Einzelteile gelasert und zum ersten Mal zusammengebaut.

Erste Montage des Modulkastens

Die Lasermaschine hat wie immer gute Dienste geleistet und die CAD Daten in anfassbare Teile verwandelt. Die einzelnen Modulteile wurden aus 5 mm und 3 mm Birkensperrholz gelasert. Der Lasercut wurde mit einem CO2 Laser mit 80 Watt Leistung durchgeführt und war für alle Teile nach 13 Minuten erledigt.

Der Modulkasten konnte im Anschluss schon vorab ohne Leim und Schrauben zusammengesetzt werden. Erstaunlicherweise hat die Konstruktion schon ohne diese Hilfsmittel eine gewisse Stabilität. Eine gute Idee war es, genügend Aussteifungen oben und unten sowie die 90° Eckstücken zu konstruieren. Dadurch sind wir schon sehr winklig und stabil. Den letzten Schliff für die sichere Ausrichtung des Modulrahmens bringt das Trassenbrett. Auf die Länge sorgt es dafür, dass die Teile alle an der richtigen Stelle sind. Die Abdeckung mit ihren Aussparrungen bringt dann letzte Stabilität. Und wohlgemerkt, wir haben noch nichts verklebt. Durch das Ausklinken der Vorder- und Rückteile für die Versteifungen des Modulkastens kann dann eigentlich nichts mehr schief gehen.

Auf zur nächsten Etappe

Bis jetzt hat ja alles prima geklappt. Demzufolge steht als nächstes die Verklebung der Einzelteile zum kompletten Modul an. Dann werden wir auch etwas zur Verwindungssteifigkeit sagen können. Wer möchte kann uns ja gern noch ein paar gute Tipps zukommen lassen oder weiter unten im Kommentarfeld eine Meinung dazu abgeben. Wir freuen uns auch immer über Vorschläge oder Wünsche für die Module. Sollte alles passen, überlegen wir uns unseren Modulkasten der Allgemeinheit anzubieten. Also die Teile auf Bestellung und Kundenwunsch zu lasern. Die CAD Dateien würden wir dann ebenfalls anbieten, damit die Selbstbauer unter Euch ebenfalls zum Zug kommen.

Update 19.10.2024

Wir bieten in unserem Shop dieses hier als Prototype beschriebene Modellbahn Modul als Bausatz oder fertiges Endprodukt an.

Link: https://moba-module.de/produkt/modelleisenbahn-mini-klein-modul-mit-deckel-spur-n-spur-z-600-x-250-mm-sperrholz-optional-montageecken/


Post in English

The individual module parts are lasered

In the article module box in N gauge for segments and dioramas, we presented our new module for N gauge with the slope profile. Now we have lasered the individual parts and assembled them for the first time.

First assembly of the module box

As always, the laser machine did a good job and transformed the CAD data into tangible parts. The individual module parts were lasered from 5 mm and 3 mm birch plywood. The laser cut was carried out with a CO2 laser with 80 watt power and was done for all parts after 13 minutes. The module box could then be assembled in advance without glue or screws. Amazingly, the construction has a certain stability even without these aids. It was a good idea to construct enough stiffeners above and below as well as the 90 ° corner pieces. This makes us very angled and stable. The finishing touches for the secure alignment of the module frame are made by the tray board. In the long run, it ensures that the parts are all in the right place. The cover with its recesses then brings ultimate stability. And mind you, we haven’t glued anything yet. By notching the front and back parts for the stiffening of the module box, nothing can actually go wrong.

On to the next stage

So far everything has worked out fine. As a result, the next step is to glue the individual parts to form the complete module. Then we will also be able to say something about the torsional stiffness. If you want, you can send us a few good tips or give us your opinion in the comment field below. We are always happy to receive suggestions or requests for the modules. If everything fits, we consider offering our modular box to the general public. So to laser the parts to order and customer request. We would then also offer the CAD files so that the do-it-yourselfers among you also get a chance.
